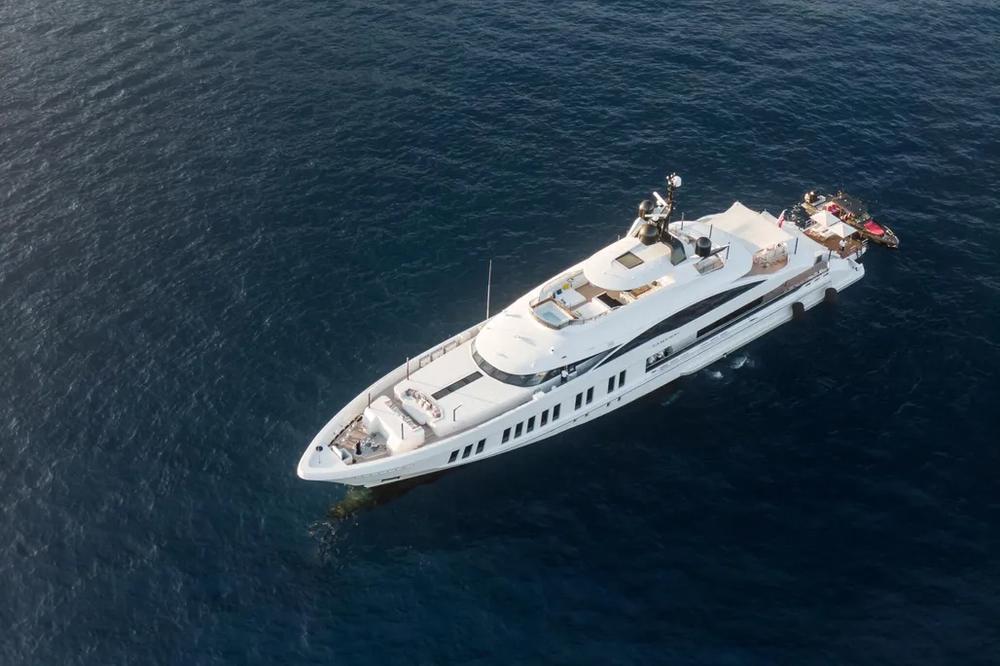

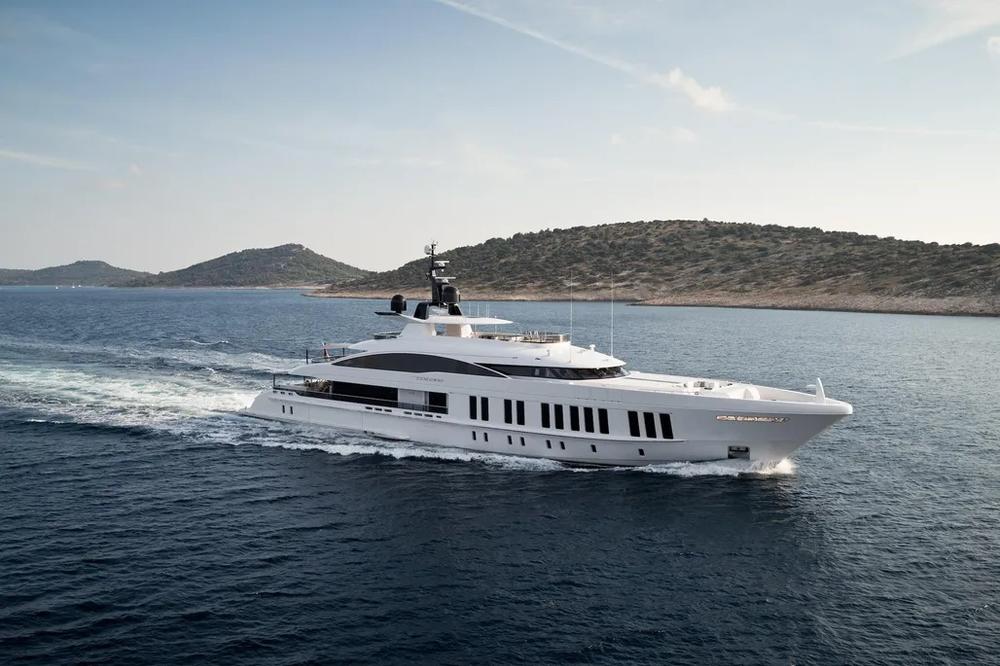

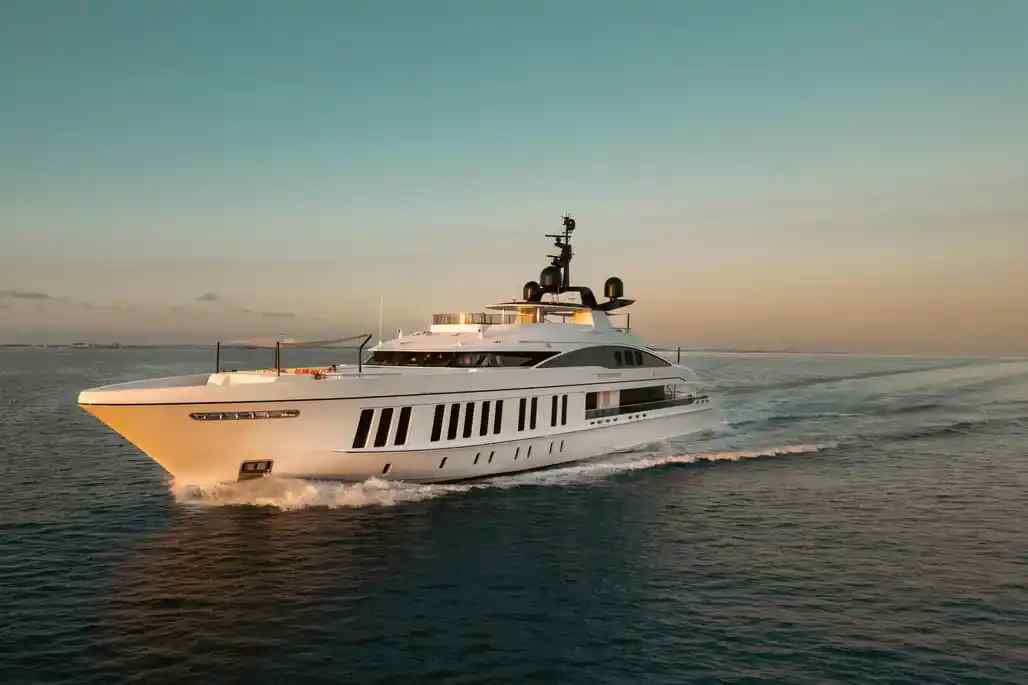

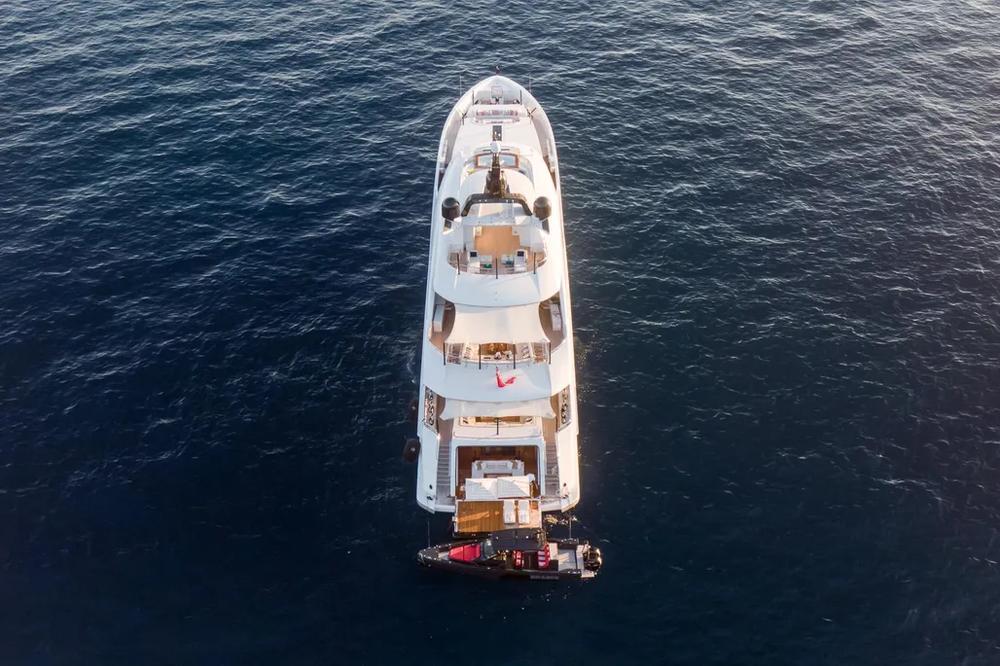

2016 Alia Yachts 60M For Sale

Samurai  is an extraordinary fusion of power, elegance, and state-of-the-art craftsmanship. Available through FGI Yacht Group in West Palm Beach, Florida, this superyacht for sale exemplifies modern luxury, offering a sleek, high-performance design with lavish interiors and expansive entertainment spaces.

SUN DECK

Beginning up top, Samurai’s vast sun deck features an elevated Jacuzzi from which guests can take in the panoramic views and water-jet massage. Large sunpads here offer lots of space for sunbathing, while a protected lounging area nearby offers respite from the sun. Guests are shielded from the wind by glass paneling that surrounds the deck and offers unobstructed views of the water.

WHEELHOUSE DECK

This spacious level of the yacht is reserved for outdoor dining on the aft deck, or indoor relaxation in the salon. An oversized outdoor table is ideal for meals prepared by the yacht chef or Sunday morning brunch served by the crew. Aft of the table is an outdoor living space edged with white sofa seating and centered by two large low tables. Moving indoors, the salon offers various conversation areas with sofas and loose armchairs, and is an excellent option for movie nights or social gatherings. All the way forward, a Portuguese bridge leads to a quiet spot laden with sunpads and optional shading to take in the views.

MAIN DECK

The main deck aft features an intimate seating area outdoors, ideal for a late-night cocktail. Once inside, a vast, full-beam main salon with Asian-inspired décor welcomes guests to a plush lounging space with plenty of seating and floor-to-ceiling windows that bring in the outdoors. Just forward, a formal dining space seats up to ten guests and boasts two recessed ceiling panels that are well lit and edged in black lacquer.

Moving forward on this deck, guest accommodations each feature a private en suite. The master suite is located all the way forward, and features a private lounging area, as well as an oversized dressing area.

ACCOMMODATION DECK

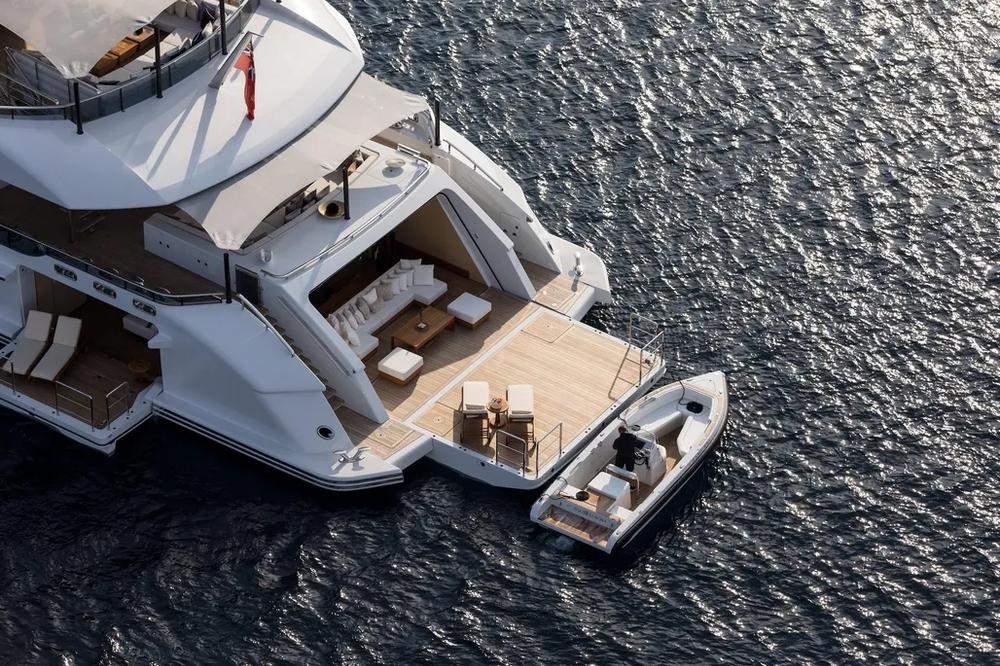

A true indoor/outdoor haven, this deck is host to a large beach club edged by a fold-down swim platform offering direct access to the water. On this level, a massage room, steam room and shower allow for a full-on wellness experience. Just aft of the beach club is a fitness area, where guests can enjoy a workout at water level within an enclosed air-conditioned space.

Other Details

Main Engines

Engine Type: MTU 16V4000M73L

Engine Hours (Port/Stbd): 8152/8273

Gearboxes for Main Engines: ZF 9350

Drive + Propeller Type: Shaft, out turning

Speed (kts) Fuel Consumption (gal/hr) Range (RPM) 10.5 188 1000 12.5 334 1200 14.5 510 1400 20 1440 1950

Generators & Electricity

Output: 200KW

Generators: CAT C9 DITA X3 / CAT C4.4BITA

Generator Hours (Port/Stbd): 16364 / 11468 / 15625 / EG 125

Generator Fuel Consumption (gal/hour): 25L/H

Shorepower: MAGNUS SP 200 250KVA

Batteries

Main Engine Starting: MASTERVOLT AGM 225AH X 12

Generator Starting: MASTERVOLT AGM 225AH X 12

Emergency: MASTERVOLT AGM 130AH X 4

Air Conditioning

Type: HIEN & HOPMAN - CHILLED WATER

Other Machinery

Watermakers: HEM H30 DUPLEX MINI X2

Stabilizers: Naiad Dynamics Model 820

Bow Thruster: ZF TT 2001 FP Thruster systems (tunnel thruster fixed pitch)

Steering system: JASTRAM Twin S2-21-1-35

Fuel Separator / Filtration: GEA Westfalia Separator OTC 2/OTC 3

Sewage System: HAMANN - HL-CONT PLUS 05

Fresh Water System: HEM FWS 3305

Bilge Water Filtration: RWO SKITS/S-DEB 0.5

Lube Oil Capacity: 1.62M3

Waste Oil Capacity: 3.36M3

Communication Systems

SATcom: Inmarsat Sat Phone

VSat: E3-Systems

Telephone System: Panasonic Phone

VHF: SAILOR 6222

Intercom: VINGTOR-SPA-M6S-D

Navigation Systems

Radar: FURUNO X BAND / SIMRAD ARGUS X BAND

GMDSS: COMPLIANT TO SEA AREA A1+A2+A3

GMDSS VHF Radios: SAILOR 6222

SART: McMURDO S4

EPIRB: McMURDO G5 SMARTFIND PLUS

Gyro Compass: SIMRAD GC80

Autopilot: SIMRAD AP70 MK2

Echo Sounder: FURNO FCV 295

Depth Sounder: N/A

GPS: SIMRAD MX510 NAVIGATION SYSTEM

Wind/Speed Log: SKIPPER EML224

Navtex Receiver: JRC NCR-333 NAVTECH RECIEVER

AIS: JOTRON TR-8000

Entertainment System / Audio Equipment

Control Systems

Lighting (Lutron) / Video/Audio (Iviewer4 by icon connect)

Galley: Denon

Galley & Laundry Equipment

Main Galley Equipment

Cooking Equipment:

• MKN - Induction Cook Top 2023105S, 2023104S
• Rational Oven SCCWE61
• MKN STATIC OVEN CSE113000474
• DFF MKN 2020332S

Refrigeration/Freezer: Electrolux ESP72HR X2 / Electrolux REX71FF60

Dishwasher: Hobart

Crew Galley/Mess Equipment

Cooking Equipment: MIELE - MICROWAVE

Refrigeration/Freezer: MIELE - FRIDGE/FREEZER

Additional Galley Equipment

Refrigeration/Freezer:

• Walk in fridge - Hein & Hopman
• Walk in garbage fridge - Hein& Hopman
• Walk in freezer - Hein & Hopman

Laundry Equipment

Main Laundry Equipment:

• MIELE DRYER - PT7136 Vario ED X4
• MIELE Washing machine - PW0665 Vario LP ED X4

Tenders & Toys

Tenders:

• Smuggler Marine Ltd Strata RIB 630 stern drive
• Narwhal Inflatable craft SOLAS rescue boat SV-420

Dive gear: x8 full sets of equipment

Wave runners: x2 PWC Seadoo GTR

Other:

• x3 seabob
• x2 Lift e-foil
• x2 Radinn board
• Jet ski fly board

Deck Equipment

Anchor Windlass: MUIR VRC15000

Aft Warping Capstans: MUIR VC11000

Anchors: Pool n fully balanced

Anchor chain: QINGDAO Anchor chain 165m x2

Boat crane and davits: Fuchs tender crane

Passerelle: CRAMM passerelle

Swimming platform: Winel 126 Transom door

Security, Fire Fighting & Safety Equipment

Security Equipment

CCTV System: NOVUS CCTV SYSTEMS

Cameras: NOVUS CCTV

Monitors: NOVUS CCTV

Fire Fighting Equipment

MARIOFF Hi FOG Fixed fire sighting system

Safety Equipment

Compliant to Cayman Islands cargo ship safety equipment certificate

The Alia Yachts 60M, Samurai, is a true masterpiece of superyacht design, ready for her next adventure. Contact FGI Yacht Group to discover this superyacht for sale in West Palm Beach, Florida.
