2021 Dragonfly Trimarans 32 Evolution For Sale

2021 Dragonfly 32 Evolution for Sale – High-Performance Trimaran in Baltimore, Maryland

A Unique Opportunity to Own a Versatile Trimaran

The 2021 Dragonfly 32 Evolution is a remarkable sailing vessel that combines performance with comfort, making it perfect for both cruising and socializing. This trimaran is designed for sailors who appreciate speed and stability, featuring a lightweight construction that enhances responsiveness on the water. With its innovative design and well-thought-out features, the Dragonfly 32 Evolution is ready for your next adventure, whether you’re racing or enjoying a leisurely sail.

Innovative Design and Comfortable Living Spaces

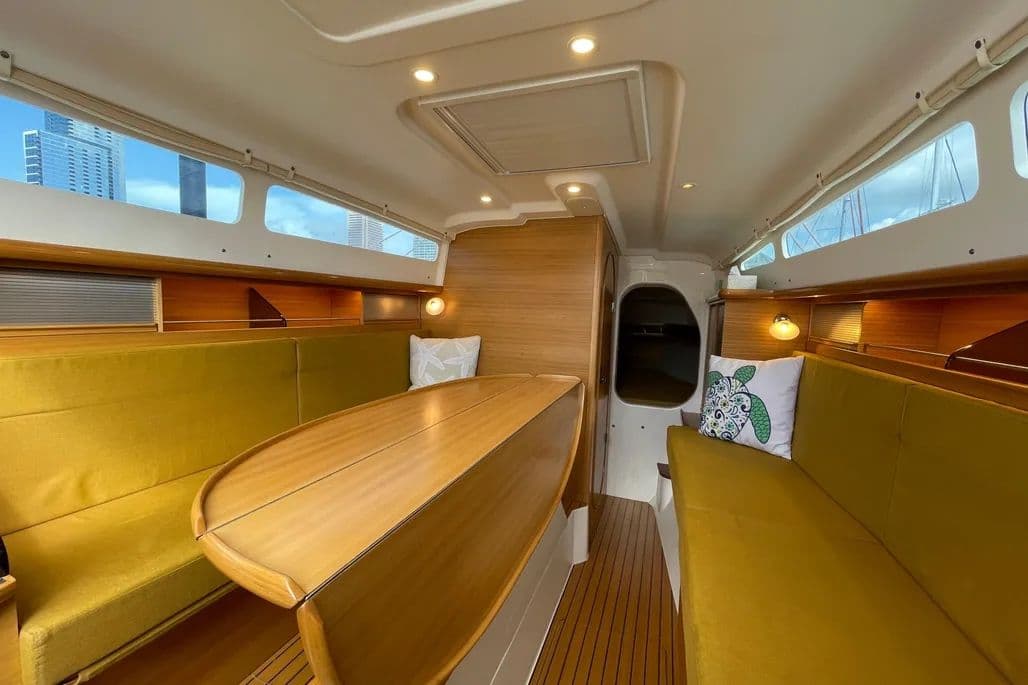

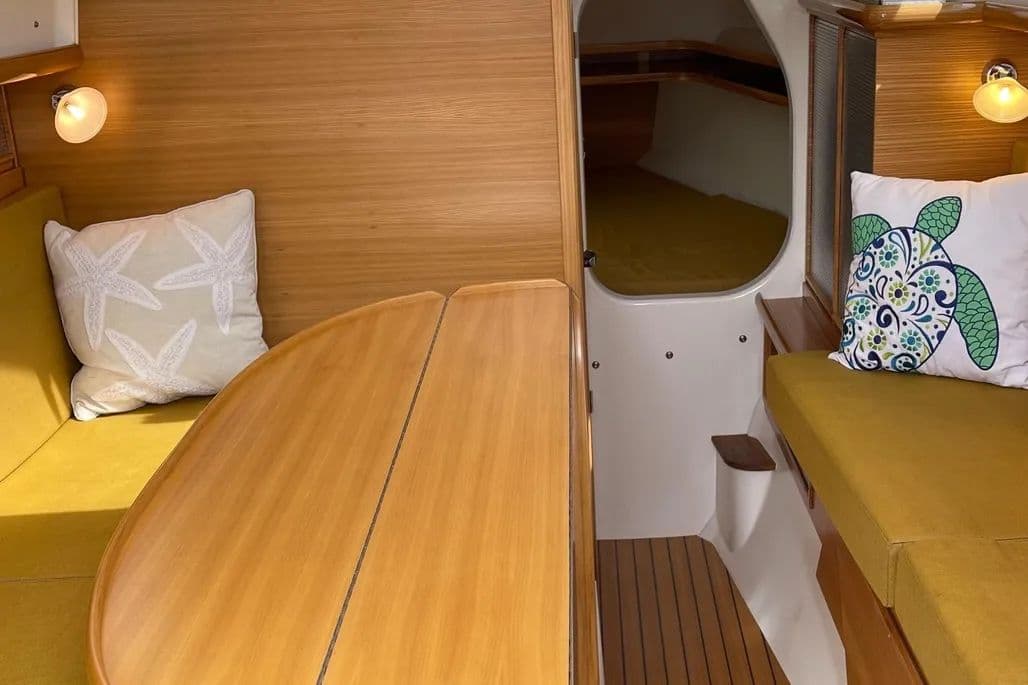

The Dragonfly 32 Evolution boasts an impressive layout that maximizes both performance and comfort. The spacious cockpit is perfect for entertaining guests or enjoying a quiet evening under the stars. Below deck, the interior is thoughtfully designed with natural light flooding through large windows, creating a welcoming atmosphere. Accommodations include two cabins with double beds, ensuring comfortable overnight stays for you and your guests. The trimaran is equipped with essential amenities, including a shower and a well-equipped galley, making it an ideal choice for extended voyages.

Specifications – 2021 Dragonfly 32 Evolution

• Builder: Dragonfly Trimarans
• Model: 32 Evolution
• Year: 2021
• Vessel Location: Baltimore, Maryland, US
• Length: 32.48 feet
• Beam: 27 feet
• Displacement: 7605.95 lbs
• Main Sail Area: 624.3 sq ft
• Engine: Yanmar 3YM20, 21 HP
• Fuel Type: Diesel
• Accommodations: 2 cabins, 1 head
• Draft: Standard 6.23 feet, Optional 1.8 feet

A first class example of the gorgeous Dragonfly 32 Evolution folding trimaran. Built to the highest standards in Denmark by Quorning Boats. This little-used example has been conscientiously maintained, is in impeccable condition, and needs nothing. With her retractable floats she will fit in a 15 ft wide slip.

Located in Baltimore at the owner's slip, delivery to other locations on Chesapeake Bay or further afield can be arranged.

Recommissioned for the 2025 season and sails have been returned from winter professional inspection/cleaning/storage in a climate controlled unit.

Construction

Wing, deck in white Gelcoat finish.
Deck and structural parts of the interior are made in hand-laid fibreglass and Biaxial fibres combined with Divinycell closed cell foam core sandwich construction
Deck colour in white Gelcoat and white non-skid on deck areas.
The 4 wings and the 2 main structural composite bulkheads are made in unidirectional and Biaxial fibres in Vinylester resin – tempered.
Composite Vinylester centreboard complete with kick-up system and downhaul.
Carbon rudder with kick- up system and downhaul.
Tiller steering.
Watertight collision bulkheads forward in all 3 hulls.

See dragonfly.dk/dragonfl-32 for dimensions

Below deck

Interior in elm wood laminate/plywood with elm wood floor.
Interior cushions.
6 cabin windows in acrylic.
2 x flush deck hatches in acrylic/aluminium on centre hull and one hatch on each float deck.
Escape hatch in aft cabin.
Water tank, 120 litres.
2 sinks (pantry/toilet) with pressurized water.
2-burner gas stove flush mounted with cover, incl. 3 kg camping gas bottle.
2 x automatic bilge pumps, 12V + one hand pump for main bilge operated from cockpit.
Marine toilet with 60 l holding tank with manual pump-out to sea + deck outlet.
Installed options:
65 l fridge box on port side of centreboard with 12V cooling unit Isotherm ASU 3201
Diesel heating unit D2, diesel, with outlet in aft + main cabin
Warm water boiler, 15 l
Shower in toilet with Gulper pump direct into sea + shower curtain
Gauge for main water tank system

Cockpit and deck

Two fire extinguishers.
Flagpole.
2 x trampoline nettings in strong material.
2 x Andersen ST 46 winches on cabin top for halyard and genoa sheets.
2 x self-tailing Winches, Andersen ST 28 for main sheet and mainsail traveller control and 2 x winch handles.
4 x stainless pollars (mooring cleats) and 4 x mooring lines, each 14 metres.
4 x water stays in 12 mm high tension Dyeform cable quality.
Bow pulpit and aft push pit in stainless.
One bathing ladder in stainless on one float.
Stripe work on cabin top and floats.
All sheets and lines for controlling the standard sails.
Installed options:
Cockpit table in wood with Laguna bracket and storage system
Sprayhood a.k.a dodger
Shower at the back of cockpit, cold and warm water
Rope pockets in cockpit, 4 pcs.
Extra hatch in float 800 x 500 mm and inside finish, each

Electrical and electronics

Complete 12V electrical installation with master switch and automatic fuses + one 12V plug.
2 x AGM batteries for consumption, each 70 Amp/h (maintenance free).
Various LED cabin lights.
Navigation LED sailing position lights.
Anchor light in masthead. Compass with light.
Installed options:
Shore power, 110V with F1 fuse system. 25 Amp automatic charger, 3 outlets and 25 m cable
Extra 12V plug, double USB, mounted at chart table
Solar panels (2 x 50W) on the floats, incl. charge control. One on each float
Anchor light/motor light in mast top in LED
VHF-antenna in masthead with deck plug at mast base
Raymarine VHF, RAY 53, incl. internal GPS
2 x Raymarine i70 Multicolour displays, incl. speed + depth + wind transducer and backbone system
Raymarine AXIOM 9 Touch, GPS 9” colour chart plotter incl. GPS antenna, no charts
Raymarine Evolution Sail pilot under deck (wheel/tiller), incl. P-70 display and JEFA drive
Raymarine AIS 700 Class B transceiver, incl. splitter

Engine and Propulsion

Inboard Yanmar Diesel, 3 cyl , 21 HP with sail-drive + 3-blade folding propeller + 70 l fuel tank and extra
1 x 50 AmpH separate engine battery and main switch.
Engine hours as of March 2025: 149
Installed options:
Bow thruster, retractable, 65 kg. thrust, incl. dedicated 70 Amp battery

Mast, rig and sails

"Wave piercing" float designs, giving additional buoyancy (+20%) more volume and longer floats.
16.5 m full Carbon mast – white painted.
Mainsail, 58 m2 high-tech Elvström Epex Laminate quality with Technora Black Fibres and Double Grey Taffeta with 8 battens + 3 reefpoints.
Furling-reef Genoa, 29 m2 in high-tech Elvström Epex Laminate Quality with Technora Black fibres and Double Grey Taffeta, incl. 4 battens in the leach. Genoa sheeting block/track adjustable from cockpit.
Dyneema halyards + extra Code- 0 halyard in Dyneema.
Installed options:
Extra costs to upgrade standard cabin top Andersen 46 winch to electrical STE
2 x Andersen ST 18 winch on cockpit coaming for controlling spinnaker and other lines
Barberhaul system for genoa and spinnaker, incl. 8 blocks and jammer
Boomvang (preventer system) 1:3 and jammer
Bowsprit, Evolution, 2.0 m carbon incl tack line system controlled from cockpit
Code-0, incl endless furling system, Elvstrøm Epex in Technora Black, 66.5 m² (Evolution)
Code-0 Dyneema sheets and blocks
Mainsail cover, SUNTT 5035 152 Silver
UV protection bonded to genoa leach and foot, greyUV protection bonded to Code Zero leach and foot, grey

Painting and antifouling

Installed options:
Coppercoat antifouling on all three hulls, rudder and centreboard
All three hulls painted in RAL 5015 Sky Blue
Waterline stripe work on 3 hulls, 3M #100-10

Mooring and anchoring

Installed options:
Anchor fitting in stainless, with rolls in anchor locker
Delta anchor, 16 kg, galvanized
Electrical anchor winch (windlass) below deck, 800 W (model “Quick” Prince)
Anchor warp with lead, 50 m with swivel with 14 mm line
Anchor bridle with hooks
Folding cleat in stainless steel on each float, 2 pcs.

Other

Installed options:
Lifting eyes and 4 straps
Sun Ninja Beach tent

Takacat inflatable dinghy and ePropulsion outboard motor available for extra cost

Contact Dragonfly Trimarans Northeast

For more information or to schedule a private viewing of the 2021 Dragonfly 32 Evolution, contact Dragonfly Trimarans Northeast in Penobscot, Maine, US today at +1 (207) 266-3564.
