Horizon FD100 Tri-deck 2023

Pre-owned

We are proud to introduce Jemily II, a 2023 Horizon FD100 Tri-Deck. Jemily II is a customized, highly upgraded new build that has been professionally maintained in like-new condition since delivery.

Jemily II hosts a spacious 5 stateroom layout including an on-deck master and 4 ensuite cabins below. The on-deck master has the his & her head stationed aft of the berth, giving more privacy to the room and opening up locations for 3 large closets.

In the skylounge, Jemily II has a custom layout with a partial partition between the helm station and guest area. This partition holds the massive 85” TV on the aft side for those sitting in the settee and at the bar to enjoy. The skylounge also features a day head with both interior and exterior access.

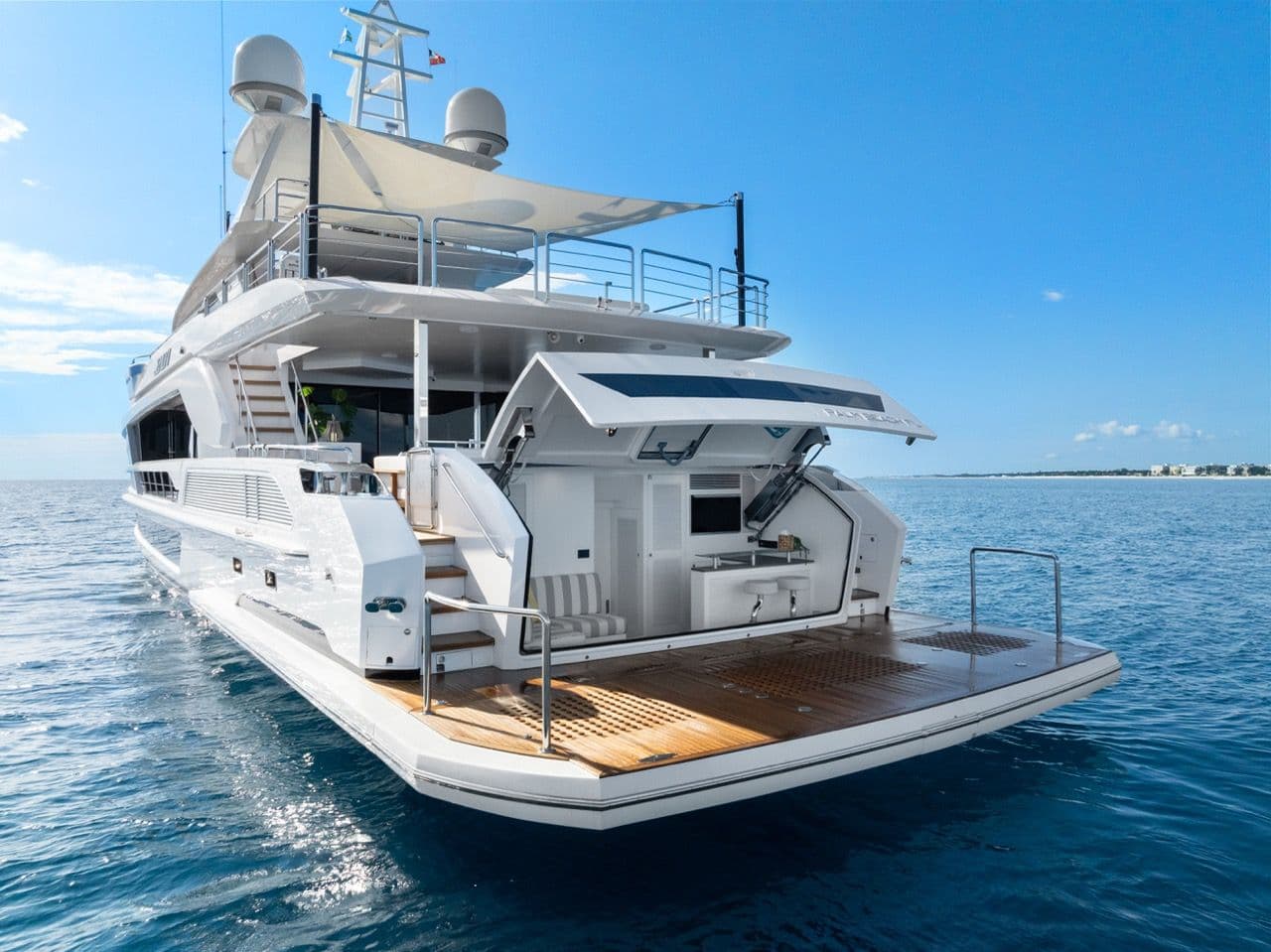

The exterior spaces throughout the boat seek to impress, starting from the 2500lb Hi/Lo swim platform with a full beach club, and the spacious aft deck that offers al fresco dining with amazing views. The boat deck has more toy storage, a jacuzzi, and a grill. The bow features a large forward settee with sun pads and lastly, the tri-deck holds a stowable formal dining table, alongside another wet bar and settee. With 360-degree views, the tri-deck is a common favorite.

Jemily II is an absolutely incredible vessel, and we encourage you to schedule a private viewing.

ENGINE ROOM AND EQUIPMENT

 -Twin Caterpillar C32A 1900hp. Hours 4/2025: 585/585
- Engine room designed with lightweight honeycomb floor
- Heavy-duty insulated engine room door
- S/S overhead grab rail on each side of engine
- Delta T engine room demisters
- Engine alarm system
- Air compressor
- Marine Air chilled water A/C - (4) chillers + ER handler
- Air handlers for interior
- Back up sea water cooling pump and A/C circulation pump
- Headhunter Sanitary Treatment System

MAIN POWER SYSTEM

 -Onan generators (2x) 40kW (60Hz) with sound shield
   Hours:  1242 Port / 1227 Strbd
- 17. 255 Ah AGM start batteries (4x)  for engines/generators with battery chargers (2x)
- 210 Ah AGM batteries(x8) for ship‘s DC 24V service power with combined inverter/chargers
(2x)
- 210 Ah emergency batteries(2x) above main deck w/ independent battery charger (1x)
- Ignition protected battery switch
- Octoplex multiplexing power distribution system
- Maretron monitoring and control system

ELECTRICAL SYSTEM

- (2) ASEA Frequency Converters
- Color-coded wiring for easy identification
- AC & DC Main electric panel with circuit breakers
- Sub-panel design with circuit breakers in each zone for electrical distribution
- Emergency power package & lighting system
- AC volt receptacles located throughout including engine room
- GFI protection for all AC outlets in exterior, heads, galley, and engine room
- Fiberglass water/exhaust separator for generator
- Electrolysis bonding system
- Cathodic protection with zinc anodes for shafts, struts
- Indirect lighting under valance in saloon, staterooms, skylounge, and galley
- Dimmer system for LED ceiling lights in aft deck and skylounge
- Dimmer system for LED ceiling lights in saloon, master,  and VIP staterooms
- Italian Vimar switches for lighting system
- Motion detection light at guest foyer close to staircase

MASTER STATEROOM MAIN DECK

- King berth with marble wall behind headboard
- Port side lounge seating
- Pop-up vanity w/drawers to starboard
- Hidden gun box w/lock in master STBD closet
- Electric blinds
- Rain shower in head
- Toto bidet seat
- Heated towel rack in head (2 units)
- Heated floor in head except shower room

GUEST COMPANIONWAY

- Miele stacked washer/dryer

 GUEST STATEROOMS

- (3) Ensuite VIP staterooms
- (1) Ensuite Twin stateroom w/sliding berth

CREW QUARTERS

- Located aft
- Two cabins with (2) bunks each and head
- Captain's cabin with own head
- Satin  finish wood on walls, vinyl ceiling
- Crew mess equipped with two-burner cook top,
  microwave, sink, undercounter refrigerator
- 32" TV
- Miele stacked washer/dryer
- Storage lockers
- Storage closet w/additional refrigeration
- Fire extinguisher

PILOTHOUSE

- Stidd pilot chairs
- Integrated instrument panel on helm station
- Day head
- Sofa seat w/table
- Heavy-duty Speich S/S wipers w/ wiper wash system
- Standard black mesh for windshield
- International LED navigation lights (incl. anchor, mast, stern, port side and starboard side light,
total 5 units)
- Full set of engine gauges at helm
- Electric fuel and water level gauges
- Octoplex/Maretron monitoring
- Monitoring system for importation equipment (bilge pumps, blowers, navigation lights)
- Chain counter (one per windlass)
- Surveillance camera system (PTZ cameras at aft deck and engine room)
- USB charger

NAVIGATION SYSTEM

-GARMIN: GPSMAP 8624 Glass Bridge MFD w/g3 Charts
-GARMIN: Twin SD Card Reader, USB, GPSMap 8xxx
-GARMIN: GRID 20 MFD Remote, Vertical

-TIMEZERO NAVIGATOR Nobeltec TZ-100
-TIMEZERO Furuno Radar Module
-HP EliteDesk 800 G6 Desktop Mini PC - Installed in Doghouse
-8-Port Gigabit Ethernet Unmanaged Switch
-Logitech - K400 Plus TKL Wireless Membrane Keyboard with Built-in Touchpad

-GARMIN: GSD 25 Premium Sonar Module
-AIRMAR: Xdcr, CHIRP-LH, 1 KW, In-Hull, 12 pin
-GARMIN: Panoptix PS51-TH Thru-Hull Transducer, Adds FrontVu Forward-Looking Sonar
-GARMIN: Radar, GMR™ 1224 xHD2 12kw w/ 4 ft. Array

-FURUNO: Antenna, 6 Foot Open Array

-FURUNO: Radar, Black Box, 25KW, 24VDC
-SIMRAD: AP70 MK2 Basic Pack, Contains AP70 MK2 Controller, AC70 Computer, And
RF300 Rudder Feedback
-SIMRAD: Precision-9 Compass

-GARMIN: MSC 10 Marine Satellite Compass

-Icom M605 VHF Without AIS, Fixed Mount Radio, 25W Output Power

-ICOM: CommandMic IV With White Backlight- Installed in Crew

-ICOM: Microphone Cable- For front mount mics at helm

-GARMIN: AIS Class B, AIS 800, w/Splitter

-GARMIN: GA 38 GPS/GLONASS Antenna

-FLIR M-364C

-GARMIN: Marine Network PoE Isolation Coupler

-GARMIN: GC 200 Marine IP Camera 3 in engine room, 1 center fwd wall facing aft, 1 in each aft
corner facing forward

-2 outside salon door in center facing aft corners

-1 aft deck center facing aft for tender

-GARMIN: GXM 54 SiriusXM Sat WX/Audio Recevier- Audio out to SONOS

-GARMIN: gWind Wired Transducer

-Airmar UST850 Smart - NMEA 2000 - Bronze Housing
-GARMIN: GPSMAP 8610 MFD, g3 US+Can+Bahamas

-Cisco Router- 2.4GHz & 5GHz- Installed in dog house
-Ubiquiti UniFi 802.11ac PoE+ Access Point 2.4ghz &   5ghz- Master, VIP. Skylounge, Aft Cockpit,
& Salon
-Ubiquiti UniFi Ethernet Switch 8-Port POE- Installed in dog house

-Ubiquiti UniFi Controller Cloud Key

-Ethernet Switch; Multi-WAN Router, Enables Networks To Switch Easily Between Multiple
Internet Sources.

-Cisco 48-Port Gigabit Unmanaged Switch- Installed in doghouse

-AIGEAN: High Power Dual Band WiFi extender   kit,-2.4GHz & 5GHz
-MoFi Cellular Device- Integrated Broadband Router

-Shakespeare antenna

-TracVision HD11/TV10 Empty Dome/Baseplate; Complete Assembly

-TracPhone V30; 2-axis Ku-band Antenna with stabilized
 -SKU & Integrated Modem installed in empty HD11 dome

-TracVision HD11 with IP Antenna Control Unit (IPACU); Universal World Ka/Ku/Ka-band
Linear/Circular Quad-output LNB
