2025 Archipelago Yachts A-80 In vendita

2025 Archipelago Yachts A-80 for Sale: Exceptional Performance and Comfort in Fort Lauderdale, Florida

Innovative Design and Impressive Range

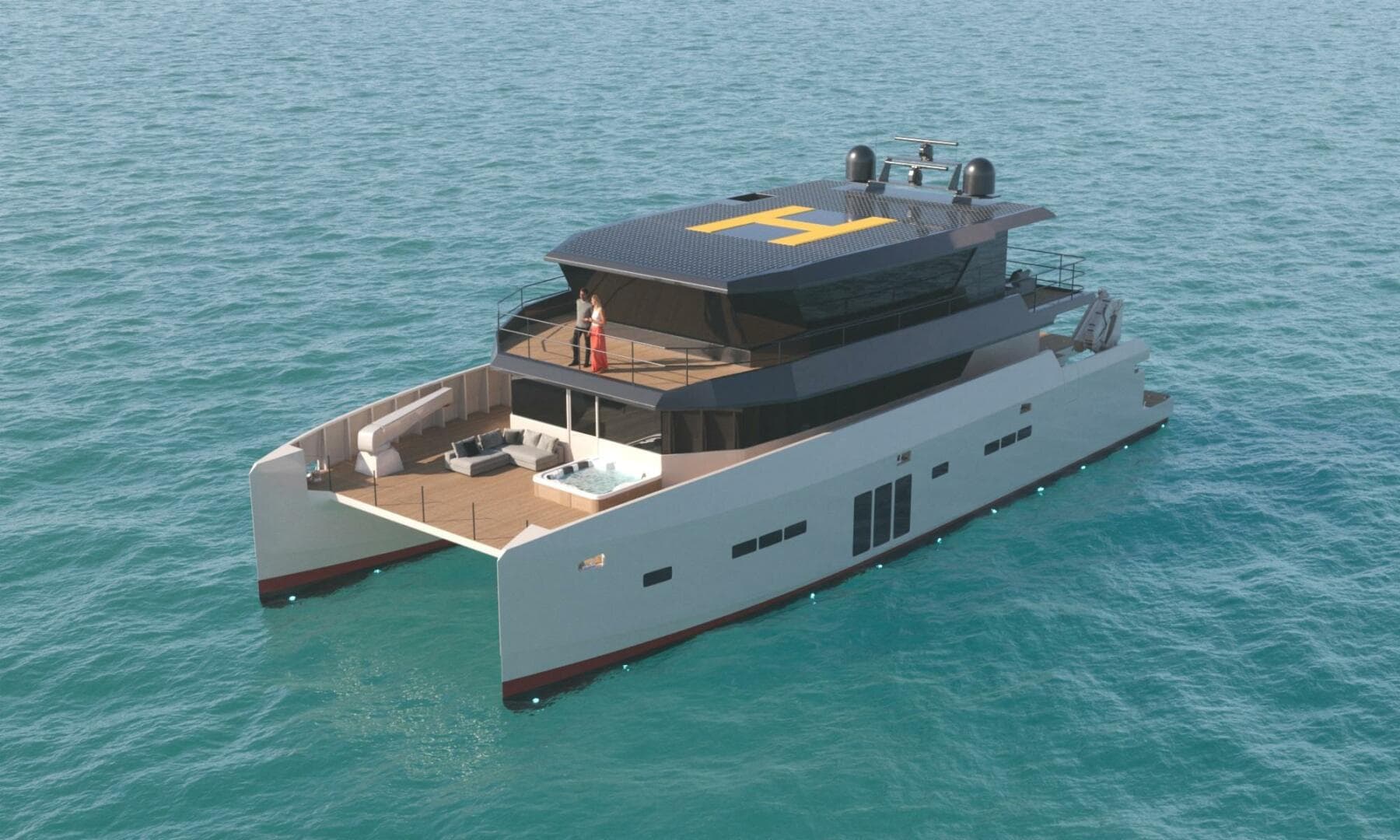

The 2025 Archipelago Yachts A-80, presented by Luke Brown Yachts, is a remarkable power catamaran that combines innovative design with exceptional performance. With a length of 78.7 feet and a beam of 36 feet, this yacht is engineered for stability and efficiency on the water. Powered by twin MAN i6-850 engines, the A-80 offers a top speed of 25 knots and an impressive range of 5,000 nautical miles, making it ideal for long-distance cruising and exploration.

Spacious Accommodations and Modern Amenities

The A-80 features a thoughtfully designed 4-cabin layout, accommodating up to 8 guests and 4 crew members. Each cabin is equipped with modern amenities and stylish finishes, ensuring comfort during extended voyages. The yacht includes 4 heads, providing ample facilities for guests. The spacious salon and outdoor areas are perfect for socializing and entertaining, with seamless access to the deck for alfresco dining and relaxation.

Advanced Technology and Safety Features

Equipped with state-of-the-art navigation and communication systems, including Raymarine electronics, AIS, and satellite internet, the A-80 ensures safe and efficient operation. The yacht also features a bow thruster for easy maneuverability and a generator for reliable power supply. Safety is paramount, with SOLAS safety equipment onboard including life rafts for 16, EPIRB, fire extinguishers, and a Cat C first aid kit.

Specifications - 2025 Archipelago Yachts A-80

Builder: Archipelago Yachts
Model: A-80
Year: 2025
Location: Fort Lauderdale, FL, USA
Length: 78.7 feet
Beam: 36 feet
Draft: 4.2 feet
Engines: Twin MAN i6-850 (850 HP each)
Top Speed: 25 knots
Accommodations: 4 cabins, 4 heads
Number of Guests: 8
Number of Crew: 4

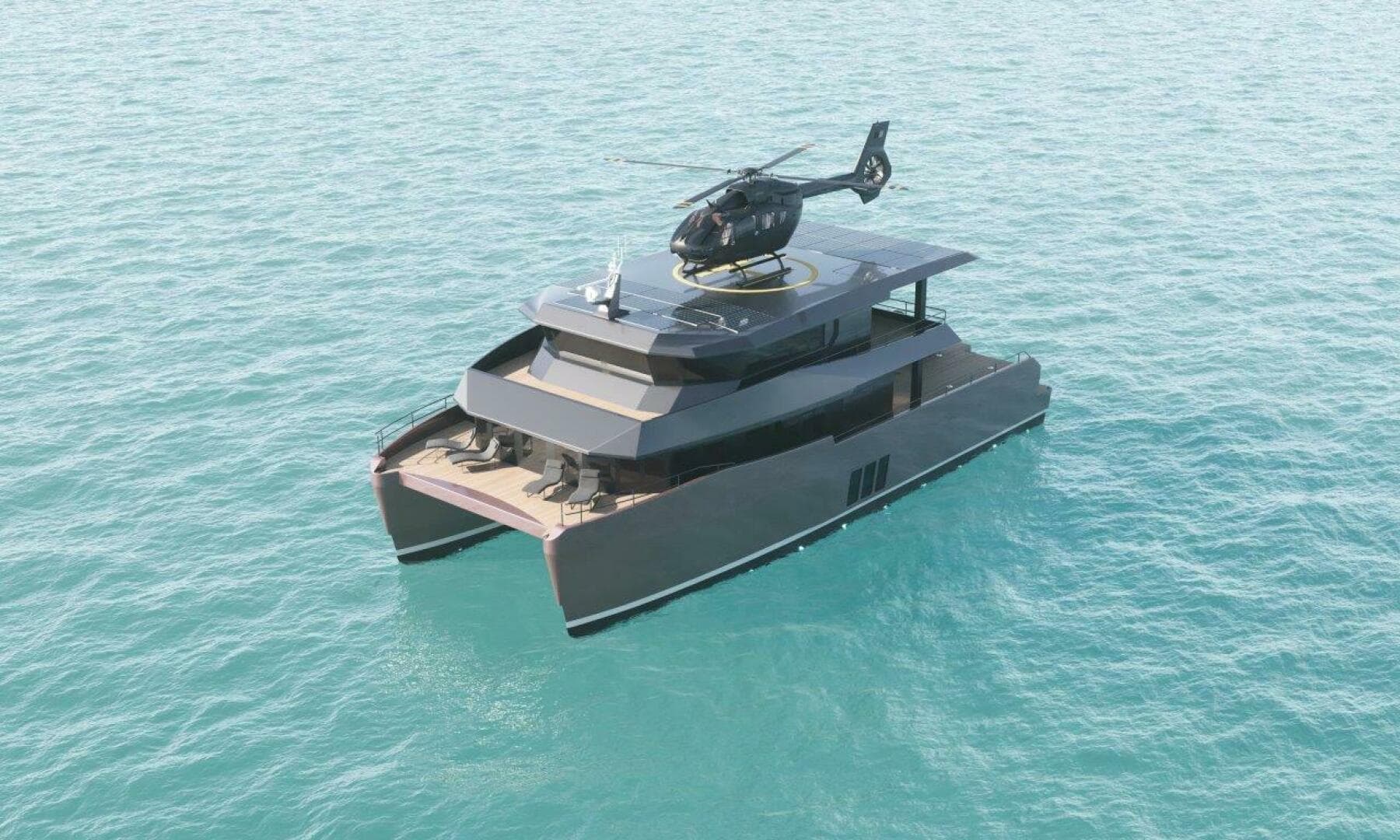

Currently under construction in Vietnam. The Archipelago A80 is designed for extended offshore exploration. Built to MCA class with 4 staterooms, 20,000l fuel, 5000nm mile range, 20kw solar, and 25kt top speed, the A80 is helicopter and sea plane capable. Super yacht quality, designed for remote areas the A80 is able to be customized to suit your needs.

Standard Layouts

•    Master Cabin + Four (4) VIP Guest cabins + Crew cabin
•    Master Cabin + Three (3) VIP Guest cabins + Crew cabin + Captain's cabin

Main Machinery, Propulsion, and Maneuvering Equipment

PROPULSION:
•    (2) MAN i6-850 main engines, 850 hp/ 625 kW each
•    (2) Stainless steel propeller shafts with dripless shaft seals and spare seat
•    (2) Bronze Veem fixed pitch 5-blade propellers with interceptor adjustment blades
•    Set of propulsion, helm, and speed control panels with levers in upper wheelhouse

POWER SUPPLY SYSTEM:
•    (1) Marine type generator set (19,0 KVA, 230 VAC @ 50 Hz, single phase

RENEWABLE ENERGY SOURCES:
•    Set of Solar panels across the entire roof area, giving c.20kW installed power

RUDDERS AND STEERING SYSTEM:
•    (2) Bronze rudders
•    (2) Rudder stocks, stainless steel
•    (2) Sets of self-aligning lower and top bearings
•    (2) Emergency tillers
•    Set of Electro-Hydraulic steering system

MANEUVERING EQUIPMENT:
•    (2) Proportional Sleipner 48V DC bow thrusters
•    (2) Proportional Sleipner 48V DC stern thrusters
•    (1) Dockmate system with Dynamic Positioning (DPS)

Deck Equipment

ANCHOR EQUIPMENT:
•    (2) Quick windlass 3000w, 230 VAC
•    (2) Galvanized anchor 75 kg VQR, plus 50m 14mm galvanized chain and 100m rode
•    (1) Emergency anchor 34 kg + 20m chain

MOORING EQUIPMENT:
•    (1) Mooring kit – 8 Fendertex inflatable fenders plus 4 mooring ropes
•    (2) Lewmar electrical mooring capstans aft
•    (1) Hinging swim ladder on the sugar scoops

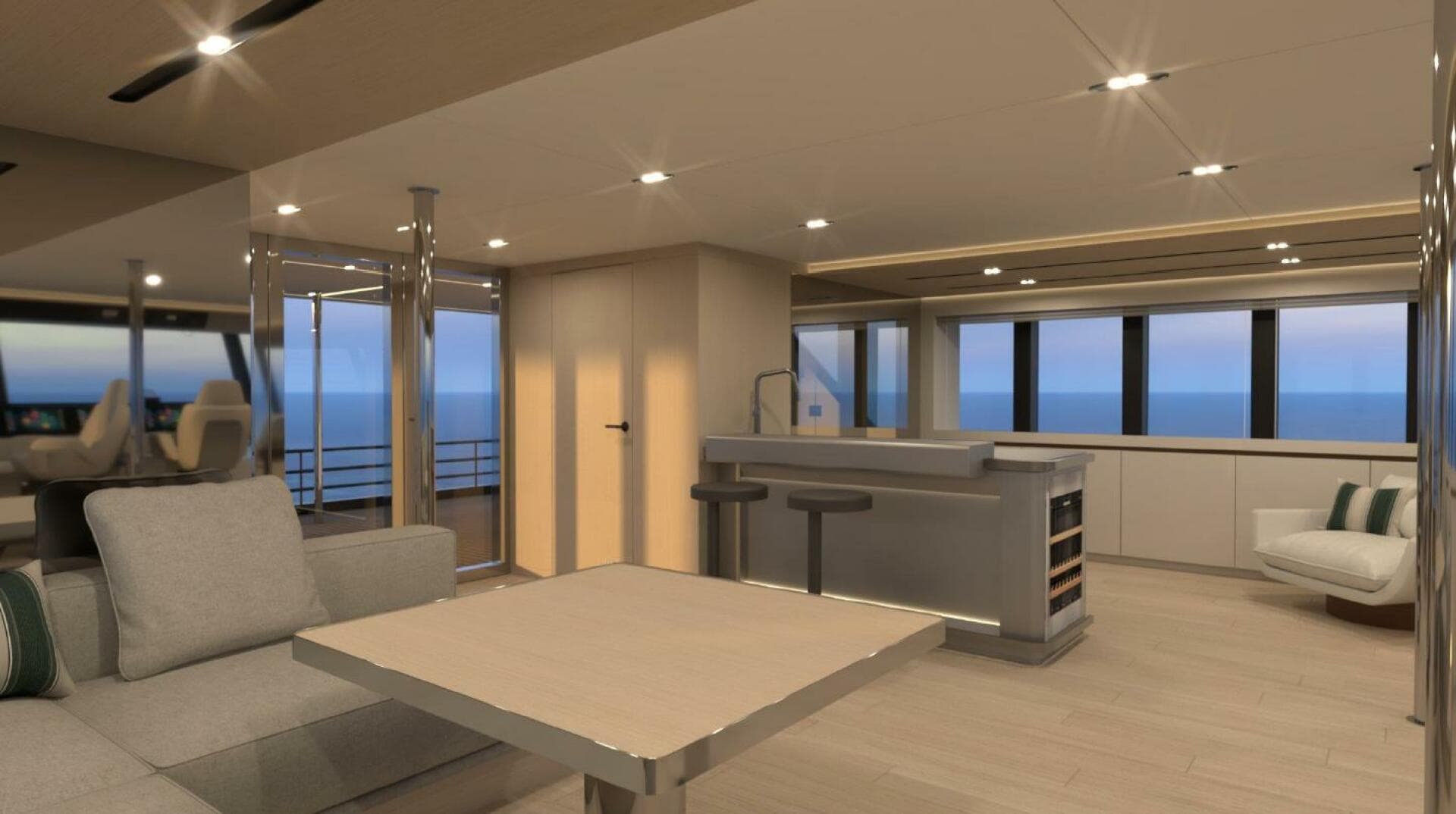

Interior

INTERIOR DESIGN:
Personalized design including:
•    (2) Days with dedicated Archipelago interior designer
•    (1) Render of Salon
•    (1) Reder of Owner’s Cabin
•    (1) Render of Owner’s Head

FLOORING COVERING:
•    Laid timber strip synthetic floor in salon and wheelhouse
•    Decorative carpet in salon – design type TBA, removable

FURNISHINGS AND INTERIOR OUTFITTING:
Set of galley and household appliances as listed (Siemens or Bosch):
•    (1) Refrigerator with freezer
•    (1) Dishwasher
•    (1) Electric oven
•    (1) Washer/dryer

Exterior

EXTERNAL HULL FINISHING SYSTEM

DECK COVERINGS:
•    All working decks finished with anti-skid painted surface

EXTERNAL DOORS:
•    (1) Sliding door (manually operated) from cockpit to salon – stainless steel frames
•    (2) Sliding door (manually operated) from wheelhouse to balcony
•    Pantograph fore access door for access to foredeck from salon

WINDOWS:
•    Set of fixed windows with tinted glass on main deck
•    Set of fixed skylights in salon fore area
•    Set of window wipers for wheelhouse with wash wipe system

Piping Systems

FUEL SYSTEM:
•    Set of separated fuel oil tanks with (2) day tanks, and (4) bunkering tanks (20,000 l total capacity)
•    (2) Racor Duplex fuel filters with drip tray and water sensors
•    (2) Fuel polishing units (one per hull)

BILGE SYSTEM:
•    (8) Electrical bilge pumps, with oil filter in engine room, in compliance with MGN280

FRESH WATER:
•    (2) Fresh water tanks with electronic readout level indicators (volume 1000 l each)
•    (2) Fresh water pressurizing pumps
•    (2) Fresh water heaters (100 l capacity each)
•    (1) Hand shower on deck
•    (1) Blue Water water maker 280l/h – 220V


DECK WASH SYSTEM:
•    (1) Fresh water outlet on cockpit (female quick-coupling snap connector)
•    (1) Fresh water outlet for washing the foredeck
•    (1) Fresh water outlet on balcony
•    (1) Fresh water outlet in both sugar scoops
•    (1) Retractable 5m hose in both chain lockers for chain wash

SANITARY DRAINS SYSTEM:
•    (2) Black/ grey water tanks 500L with discharge systems
•    (2) Electric sewage discharge pumps
•    Set of 24V electric toilets in bathrooms with fresh water flush

HVAC System:
•    Set of Termodinamica air conditioning system – capacity 250 000 BTU/h (new technology ultra-efficient – Energy Saving VFD controlled 230V AC)

Electrical Systems

AC DISTRIBUTION SYSTEM (110 or 230VAC, depending on configuration):

•    Set of AC distribution system and wiring
•    (1) Main switchboard AC 230V @ 50 Hz, 1 phase
•    (1) Shore connection (32A, 230V @ 50 Hz, 1 phase)
•    (1) Shore connection power cord 20m long
•    (2) Victron Quattro 24V/5000W/120A combined inverter and battery charger
•    Set of 230V @ 50 Hz sockets, with USB charging

DC DISTRIBUTION SYSTEM:

•    (1) Main switchboard, 24 V DC
•    Set of DC distribution system and wiring
•    (1) DC-DC charger for 24V battery bank
•    Set of Lithium battery banks (25.6V DC / 14,0 kWh)
•    (2) Sets of starting batteries for gensets
•    (2) Chargers for genset starting batteries (one per each engine room)

DIGITAL SWITCHING:

Set of Automation system (digital switching) with following functions shall be installed:

•    Lighting with dimming
•    Navigation lights
•    Control valves and pumps
•    Tank level monitoring

Lighting System

•    Set of deck lights
•    Set of interior lighting with LED lamps
•    Set of lights in engine rooms
•    Set of spot lights on sugar scoop steps and side decks
•    Set of spot lights on front terrace deck and cockpit ceiling
•    Set of Smart system controlling lights (including dimers for ceiling lights)

Navigation Equipment

•    Set of Solas navigation lights with LED lamps, including NOC lights
•    (1) Compass (135mm)
•    (1) Chronometer
•    (1) Barometer

RAYMARINE NAVIGATION PACKAGE:
•    (3) Raymarine Axiom 16” Touch Multi-function display
•    (1) Raymarine RD424HD 24” 4kW 608mm digital radome radar
•    (1) Raymarine Evolution autopilot
•    (1) Raymarine AIS700 – Automatic Identification System
•    (1) Multisensor (depth, speed & temperature sensor)
•    (1) Wind sensor
•    (1) GPS
•    (1) Raymarine Modular Dual-Station VHF radio system Ray90
•    (1) Searchlight with control unit
•    (1) Electric fog horn
•    (1) Wireless autopilot controller

Further navigational equipment / manufacturers can be supplied as required

Audio/Video/IT Equipment and Services

TV’s:
•    (1) Wide screen LED 55” TV with installation (salon)
•    (1) Lifting system up/down (if possible depending on customer layout)
•    Set of 40” LED TVs with installation (price per cabin)

AUDIO:
•    Set of Sonos wireless speakers in all living spaces (excluding heads) and eternal for aft deck and balcony

IT:
•    Set of wireless distribution throughout vessel, including 4G mobile antenna (SIM not included)
•    (1) Starlink Marine antenna with installation (subscription not included)

Safety Equipment

ADOPTION TO SPECIFIC FLAG REQUIREMENTS:
•    Compliance with MCA Small vessel Commercial Craft Code (MGN 280 (M))

FIXED FIRE EXTINGUISHING SYSTEM:
•    Set of Stat-X automatic fire extinguishing system with helm controls

MISCELLANEOUS SAFETY EQUIPMENT:
•    Set of complete rescue equipment with life-rafts for 16-people with Solas grab bag and Cat C first aid kit
•    (1) EPIRB

Contact Luke Brown Yachts

For more information or to schedule a viewing of this 2025 Archipelago Yachts A-80, contact Luke Brown Yachts today at +1 (954) 525-6617, located in Fort Lauderdale, Florida, USA.
