- Builder
- YachtWay Shipyard
- Model
- Orion
- Type
- Megayacht
- Length
- 163.3 ft
- Built in
- Netherlands
General
BuilderYachtWay Shipyard
Country of Origin🇳🇱 Netherlands
Boat TypeMegayacht
CategoryPower
Hull TypeSemi-Displacement
Hull MaterialAluminum
Vessel DesignerVan Oossanen, Omega Architects, Cristiano Gatto Design
Accommodation
LayoutLayout 1
Guest Limit12
Number of Crew9
Number of Cabins6
Single Bed4
Double Bed4
Total Berths12
Wet Head3
Dry Head6
Total Heads9
Engines
Standard · 2× MTU 12V 2000 M61
Drive TypeShaft Drive
Engines2
Horsepower per Engine816 HP
Fuel TypeDiesel
Measurements
Overall Length163.3 ft
Beam29.8 ft
Draft7.1 ft
Dry Weight650,363 lb
Fuel Tank Capacity12,416 gal
Fresh Water Tank4,200 gal
Figures are for the current generation unless marked otherwise. Where a specification differs by generation or engine package, it is shown for the relevant version.
What Is a Heesen Yachts Orion?
Project Orion is the third in our advanced 50-metre FDHF aluminium series with hybrid propulsion.
The hybrid installation will deliver a silent cruising capability and flexible power management for maximum energy efficiency. Lightweight aluminium, precision-welded to the highest tolerances with meticulous weight control by our in-house team, combined with an ultra-efficient Fast Displacement Hull Form devised by van Oossanen, allows a compact machinery package to provide optimum propulsion efficiency throughout the speed range. Two MTU 12V 2000 M61 (IMO III) of just 600kW each will deliver a top speed of 16.3 knots, while at 12 knots Orion will consume just 98 litres per hour, excluding hotel load. At ten knots in hybrid mode, fuel consumption falls to just 45 litres per hour. These are truly outstanding figures for a luxurious 50-metre yacht displacing 295 tons.
Boats Similar to the Heesen Yachts Orion
Other Heesen Yachts models to compare with the Heesen Yachts Orion.

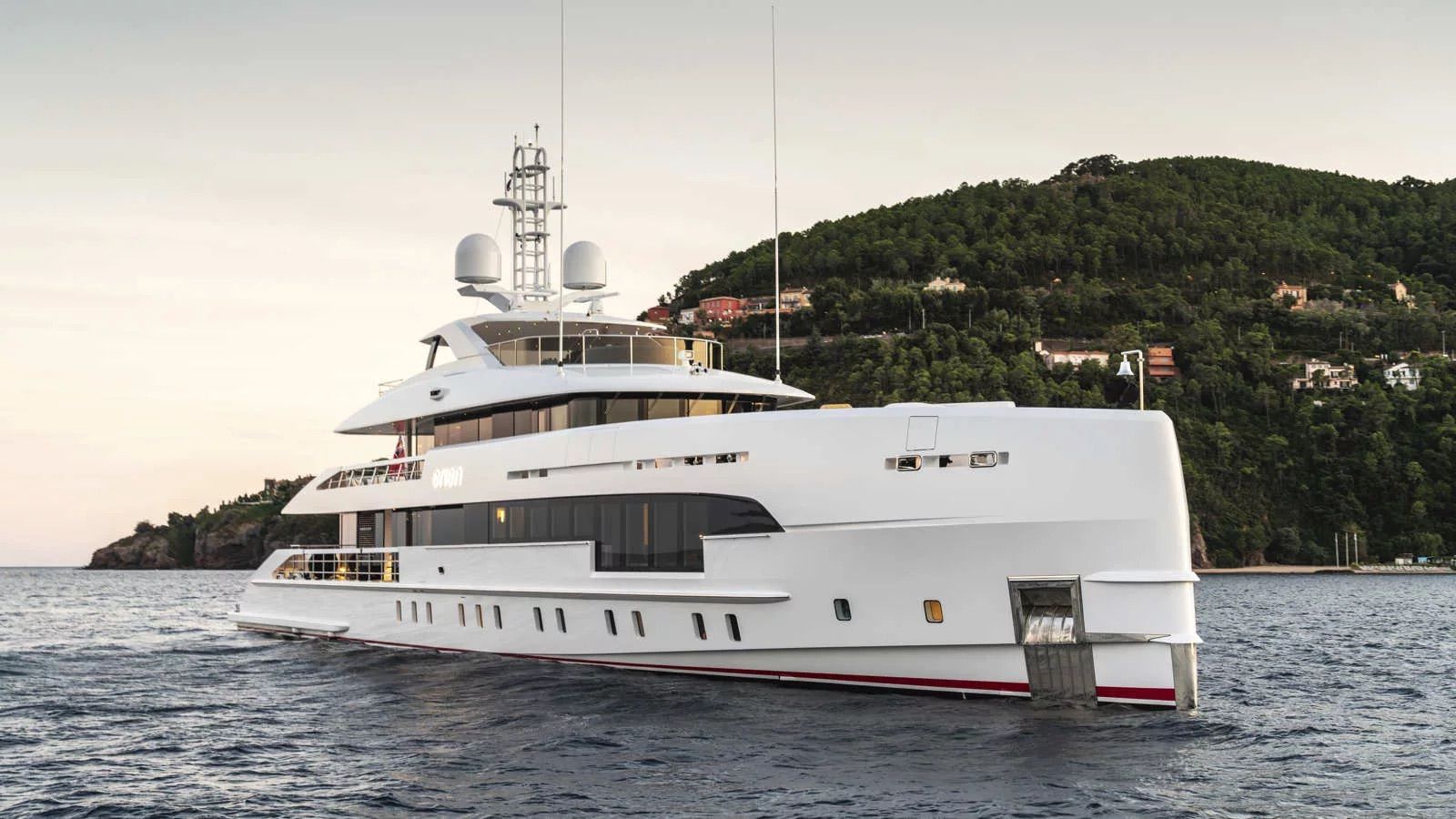

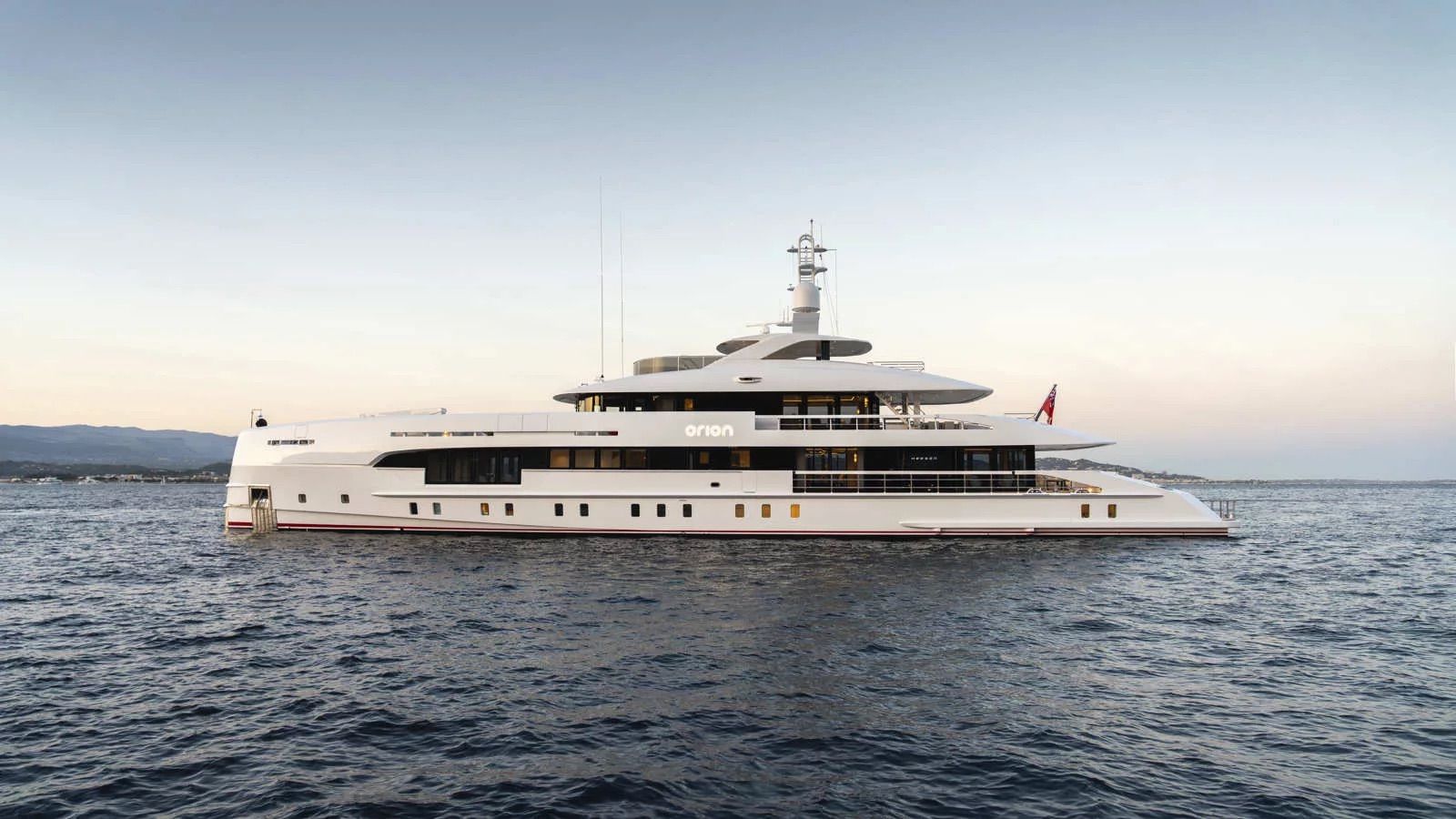

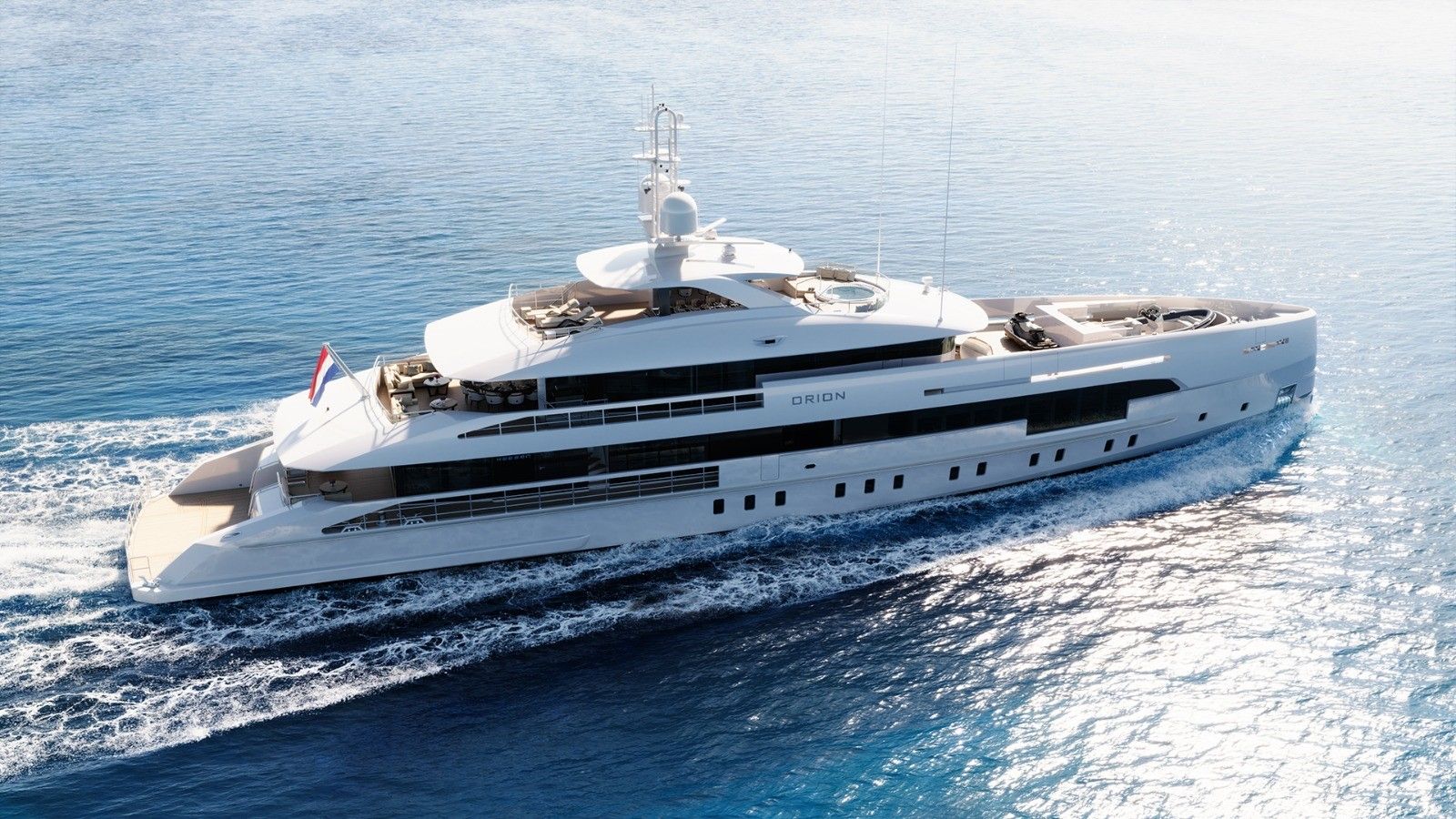

Heesen Yachts Orion Exterior
Heesen Yachts Orion Interior

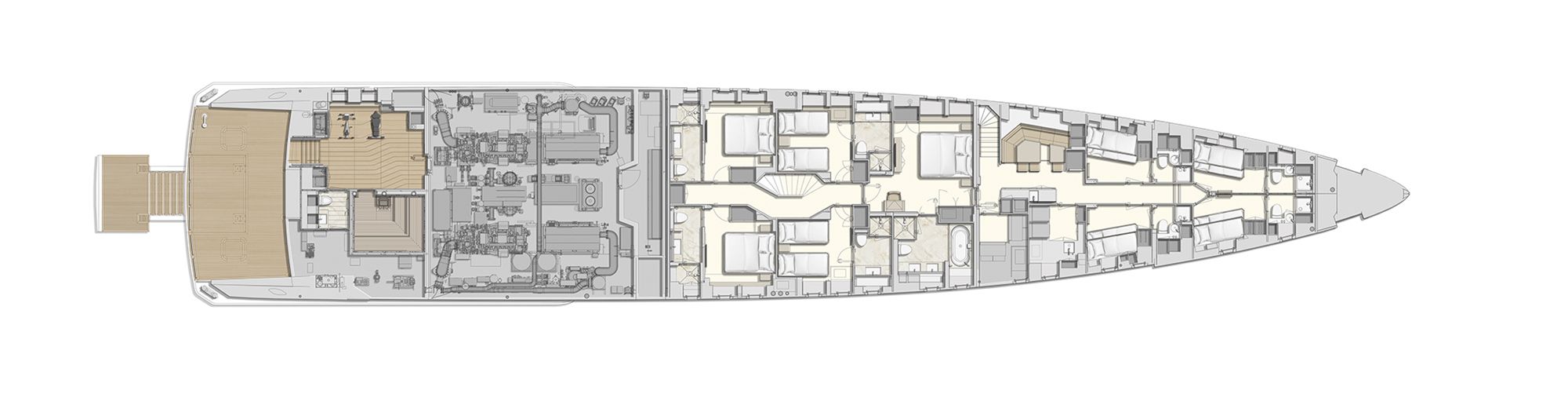

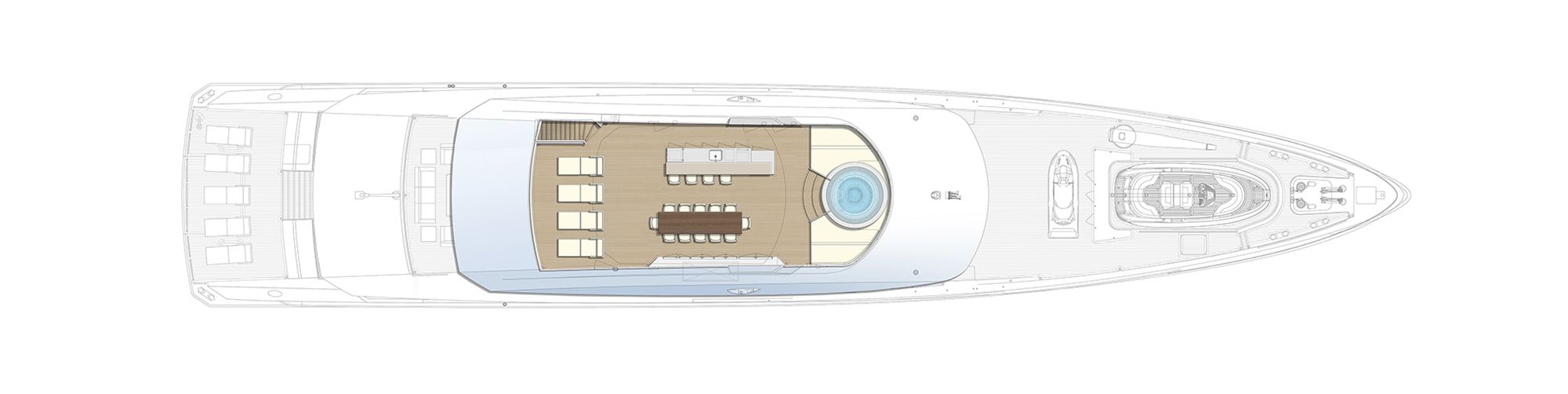

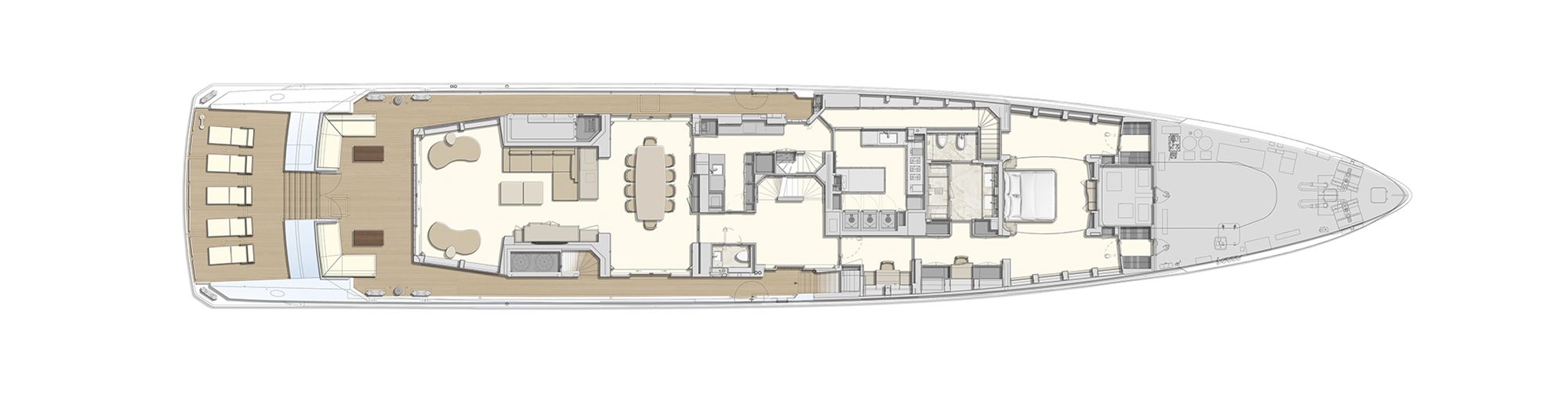

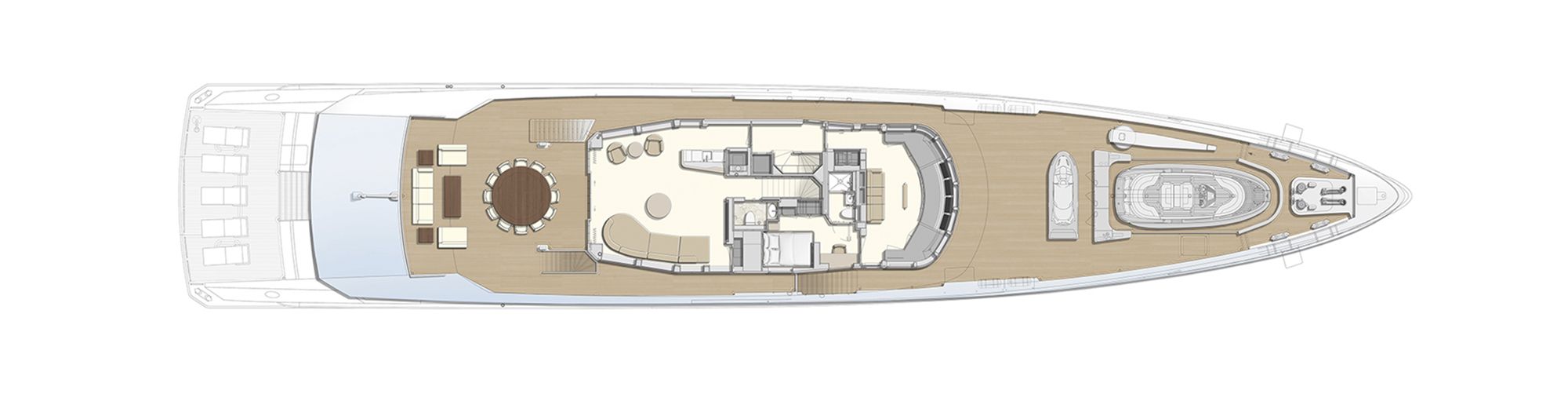

Heesen Yachts Orion Deck Layout
Frequently Asked Questions
The current generation of the Heesen Yachts Orion measures 163.3 ft overall, with a beam of 29.8 ft.
Top and cruising speed depend on the engine package and load. Check the engines tab in the specifications above and the individual listings for the figures of each hull.
New hulls are priced by the builder and its dealers and include the current generation's equipment. Used hulls are priced by their owners and reflect age, hours, condition, and upgrades since delivery.
